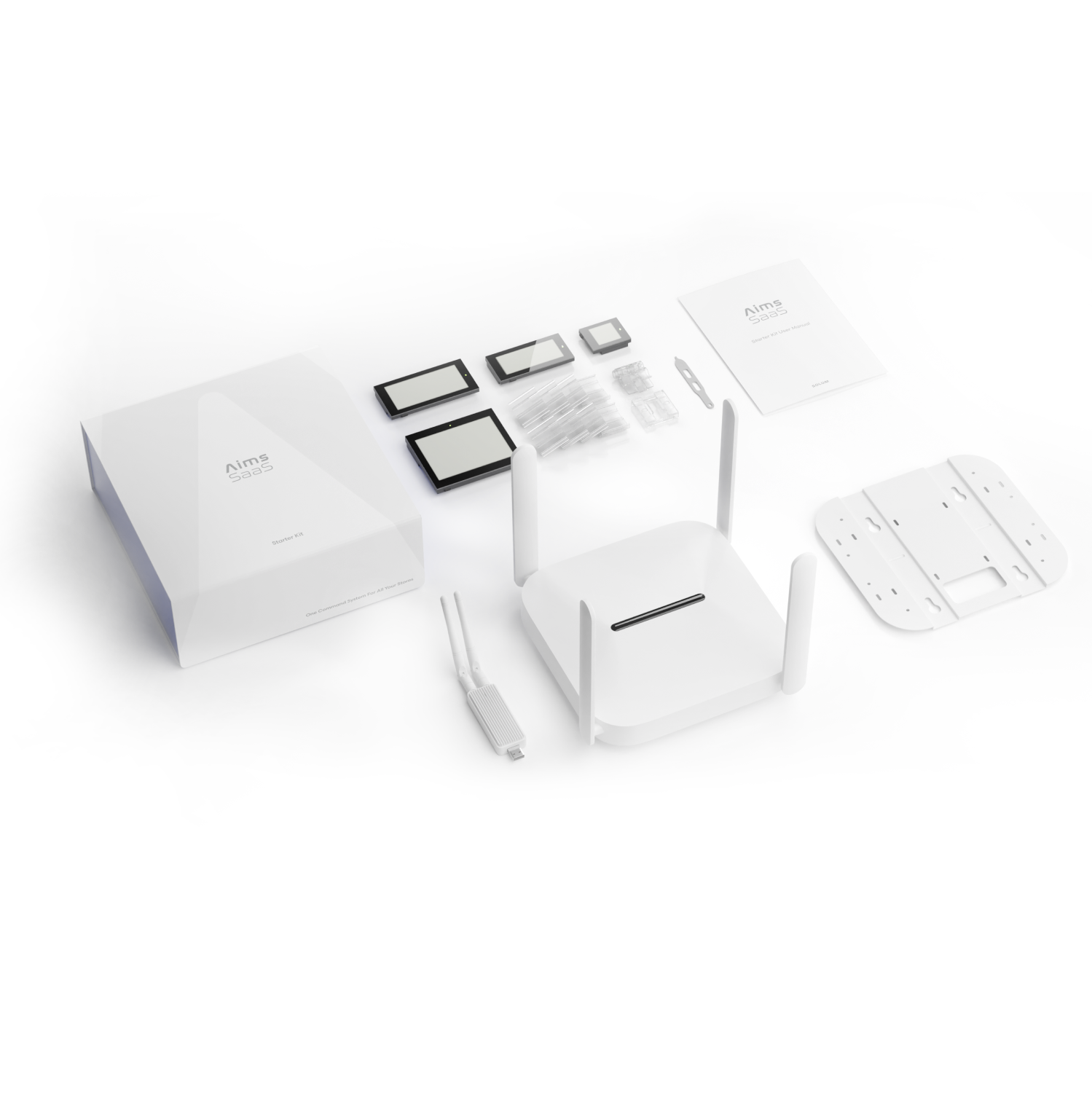

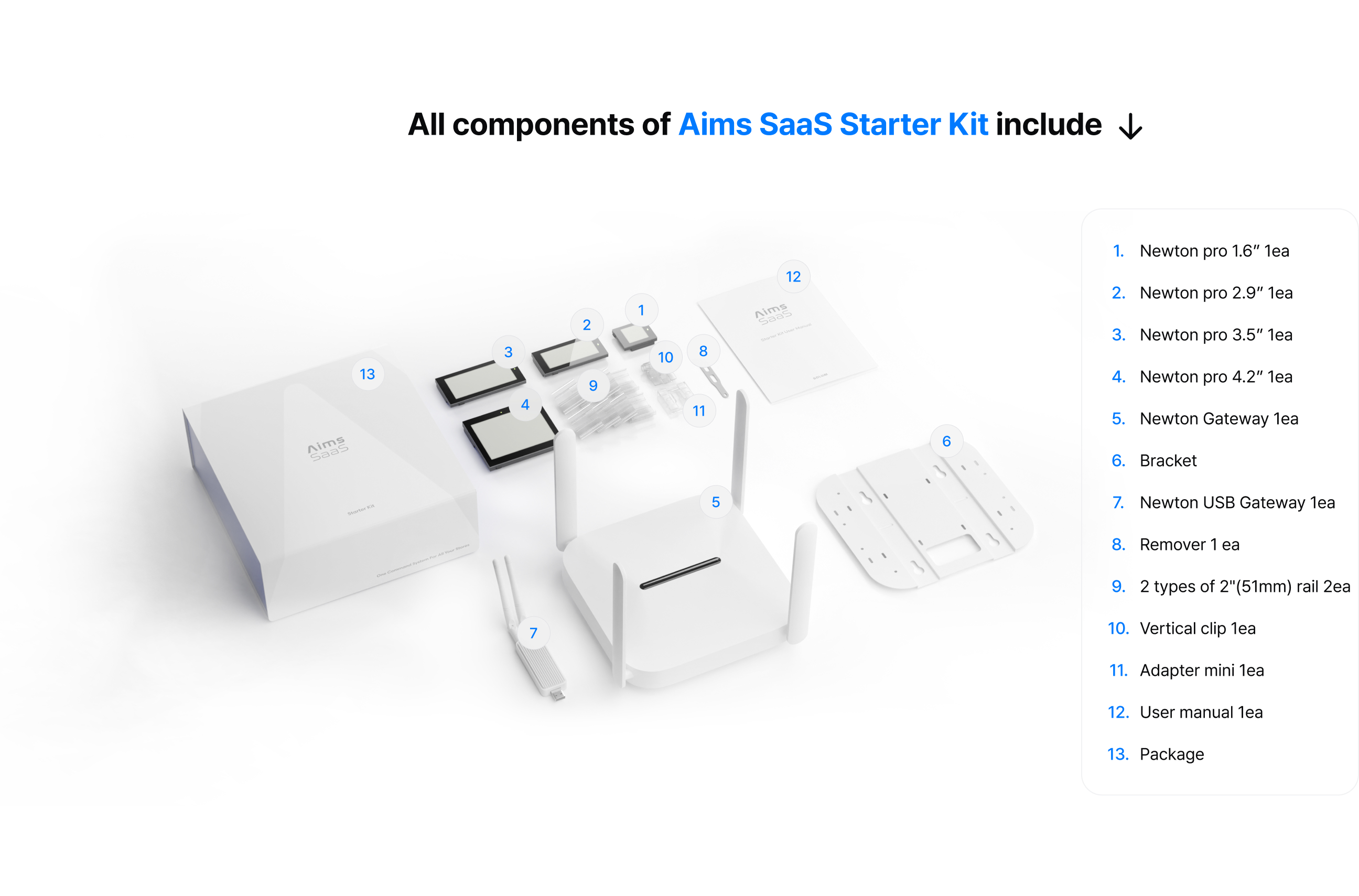

Aims SaaS Starter kit

44.9 × 36.7 × 10.45 (mm)

1.77 × 1.45 × 0.41 (in)

Active Display Area 27.0 × 27.0 (mm)
                                   1.06 × 1.06 (in)

Resolution 200 x 200 pixels

Pixel density 188 dpi

Display technology Full Graphic E-ink Display

Pixel colors BWRY (Black, White, Red, Yellow)

Viewing angle Nearly 180˚

Up to 7 pages

0 - 40°C

32 - 104°F

Type and number CR2450 × 1

Battery lifetime Up To 5 years (2 Update/day)

128-Bit AES

FCC, IC, CE, TELEC, KC, RoHS

FeliCa NFC Forum Type 3

IP68

Button 1 Buttons

LED 7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White)

2.4 Ghz

Yes

79.2 * 42.5 * 10.45 (mm)

3.12 * 1.67 * 0.41 (in)

Active Display Area 60.0 × 30.7 (mm)
                                   2.37 × 1.21 (in)

Resolution 360 x 184 pixels

Pixel density 152 dpi

Display technology Full Graphic E-ink Display

Pixel colors BWRY (Black, White, Red, Yellow)

Viewing angle Nearly 180˚

Up to 7 pages

0 - 40°C

32 - 104°F

Type and number CR2450 × 2

Battery lifetime Up To 10 years (2 Update/day)

128-Bit AES

FCC, IC, CE, TELEC, KC, RoHS

FeliCa NFC Forum Type 3

IP68

Button 1 Buttons

LED 7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White)

2.4 Ghz

Yes

76.0 × 49.5 × 10.45 (mm)

2.99 × 1.95 × 0.41 (in)

Active Display Area 57.3 × 38.2 (mm)
                                   2.25 × 1.50 (in)

Resolution 300 x 200 pixels

Pixel density 133 dpi

Display technology Full Graphic E-ink Display

Pixel colors BWRY (Black, White, Red, Yellow)

Viewing angle Nearly 180˚

Up to 7 pages

0 - 40°C

32 - 104°F

Type and number CR2450 × 2

Battery lifetime Up To 10 years (2 Update/day)

128-Bit AES

FCC, IC, CE, TELEC, KC, RoHS

FeliCa NFC Forum Type 3

IP68

Button 1 Buttons

LED 7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White)

2.4 Ghz

Yes

98.1 × 83.7 × 12.45 (mm)

3.86 × 3.29 × 0.49 (in)

Active Display Area 84.8 × 63.6 (mm)
                                   3.34 × 2.50 (in)

Resolution 400 x 300 pixels

Pixel density 120 dpi

Display technology Full Graphic E-ink Display

Pixel colors BWRY (Black, White, Red, Yellow)

Viewing angle Nearly 180˚

Up to 7 pages

0 - 40°C

32 - 104°F

Type and number CR2450 × 2

Battery lifetime Up To 10 years (2 Update/day)

128-Bit AES

FCC, IC, CE, TELEC, KC, RoHS

FeliCa NFC Forum Type 3

IP68

Button 1 Buttons

LED 7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White)

2.4 Ghz

Yes

125.0 × 182.9 × 14.85 (mm)

4.92 × 7.2 × 0.58 (in)

Active Display Area 97.9 × 163.2 (mm)
                                   3.8 × 6.4 (in)

Resolution 480 x 800 pixels

Pixel density 126 dpi

Display technology Full Graphic E-ink Display

Pixel colors BWRY (Black, White, Red, Yellow)

Viewing angle Nearly 180˚

Up to 7 pages

0 - 40°C

32 - 104°F

Type and number CR2450 × 4

Battery lifetime Up To 10 years (1 Update/day)

128-Bit AES

FCC, IC, CE, TELEC, KC, RoHS

FeliCa NFC Forum Type 3

IP68

Button 1 Buttons

LED 7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White)

2.4 Ghz

Yes

192.0 × 269.1 × 15.35 (mm)

7.50 × 10.6 × 0.60 (in)

Active Display Area 163.0 × 244.5 (mm)
                                   6.42 × 9.63 (in)

Resolution 640 x 960 pixels

Pixel density 100 dpi

Display technology Full Graphic E-ink Display

Pixel colors BWRY (Black, White, Red, Yellow)

Viewing angle Nearly 180˚

Up to 7 pages

0 - 40°C

32 - 104°F

Type and number CR2450 × 5

Battery lifetime Up To 10 years (1 Update/day)

128-Bit AES

FCC, IC, CE, TELEC, KC, RoHS

FeliCa NFC Forum Type 3

IP68

Button 1 Buttons

LED 7 Colors (Red / Green / Blue / Yellow / Cyan / Magenta / White)

2.4 Ghz

Yes
